Antares Machinery FZE

Leading Supplier of Mill Rolls, Steel Mill Equipment and Spares to the Global Markets

ANTARES Machinery FZE is a leading supplier of rolling-mill rolls, steel mill equipment, machinery and spares to global steel markets such as India, Turkey, USA and other countries.

We are a founding member of a distribution consortium of world-leading manufacturers of heavy industrial equipment, offering a range of rolling-mill rolls from compact wire and rod mills to gigantic five-meter plate mills.

Our clients benefit from value-added services such as attractive financing arrangements, end to end logistics, additional product warranties and extensive after-sales support.

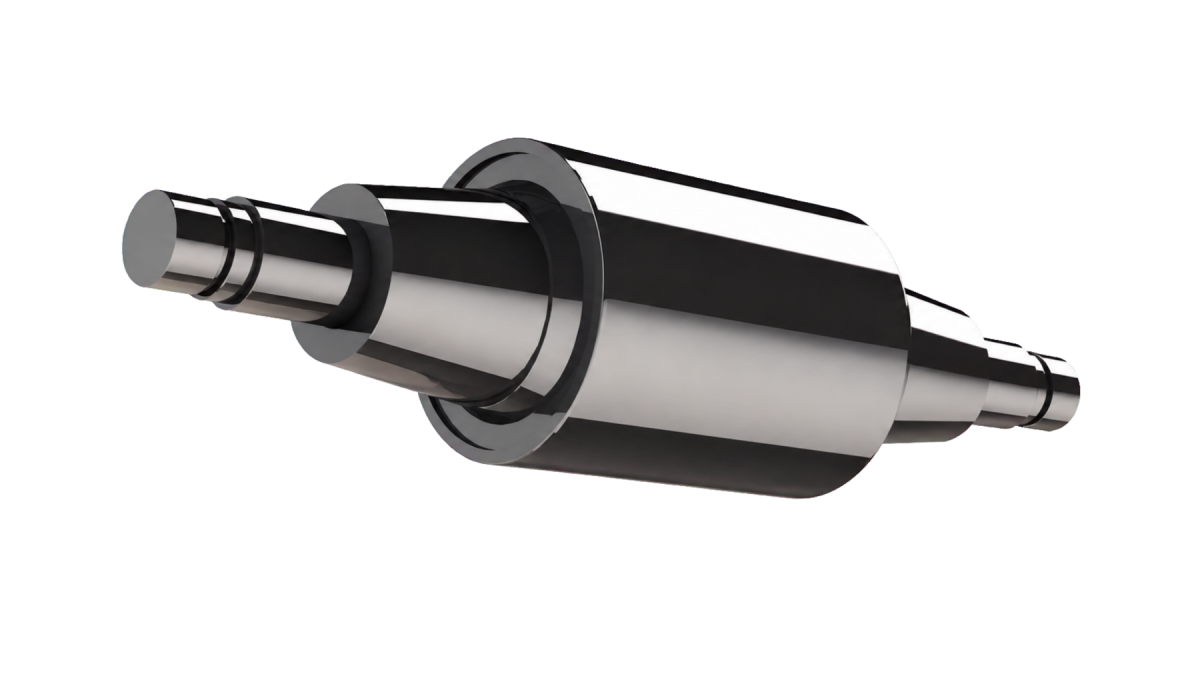

Application: plate mill, finishing stand of hot strip mill, steckel mill

Description: These rolls are spun cast with a highly alloyed shell consisting of nickel, molybdenum, and chromium. The core can be grey iron with flake graphite, iron or spheroidal graphite iron depending on the mill requirement of neck strength.

Manufacturing process: centrifugal casting

Application: plate mill, finishing stand of hot strip mill

Description: These rolls are spun cast with a working layer which consists of a very highly alloyed white iron with no free graphite in the structure. The refined iron and Cr carbides give excellent wear resistance to this material.

Manufacturing process: centrifugal casting

Application: plate mill, finishing stand of hot strip mill

Description: These rolls are spun cast with a working layer which consists of uniformly distributed complex carbides of vanadium, tungsten, niobium and molybdenum in the martensitic matrix ensures the uniform hardness of the working layer. HSS rolls have high hardness and good wear resistance at high temperatures.

Applications: medium and heavy sections mills, roughing stands of hot strip mill

Manufacturing process: static casting

Description: These rolls are special hyper-eutectoid steel rolls alloyed with nickel, chromium and molybdenum. The extra carbon and special alloys give extra wear resistance and strength. These rolls are statically cast and undergo a special high temperature heat treatment process of double annealing followed by tempering cycles to give a microstructure consisting of a fine pearlitic matrix with spherodised / broken carbide.

Manufacturing process: static casting.

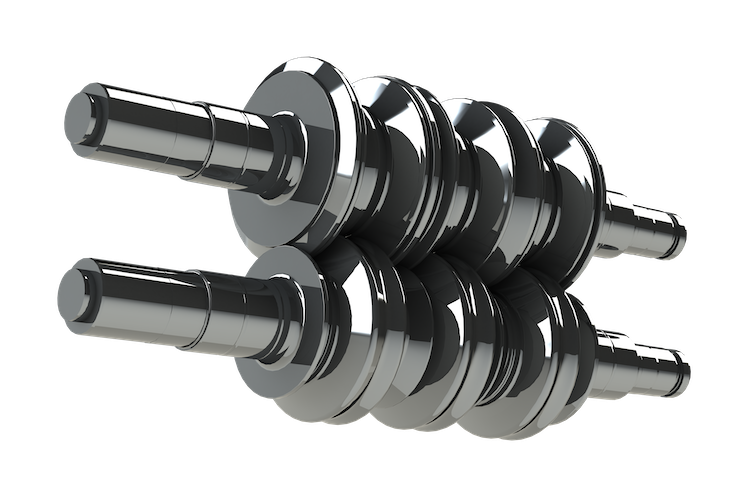

Application: bar and rod mills, light and medium section mills, narrow-strip mills, seamless tube mills

Description: Nodular irons belong to a group of cast iron in which most of the carbon crystallises as spherical particles known as graphite nodules. A wide range of properties may be obtained by adjusting the three major alloying elements: Cr, Ni, and Mo. The low nickel grade (ferritic grade) provides optimal hardness with high strength and toughness. The medium nickel grade (pearlitic iron) has higher surface hardness necessary for intermediate and finishing. The high nickel and molybdenum grade (bainitic/acicular iron) provide excellent mechanical properties at a high working temperature in terms of strength, toughness and hardness.

Manufacturing process: static or centrifugal casting

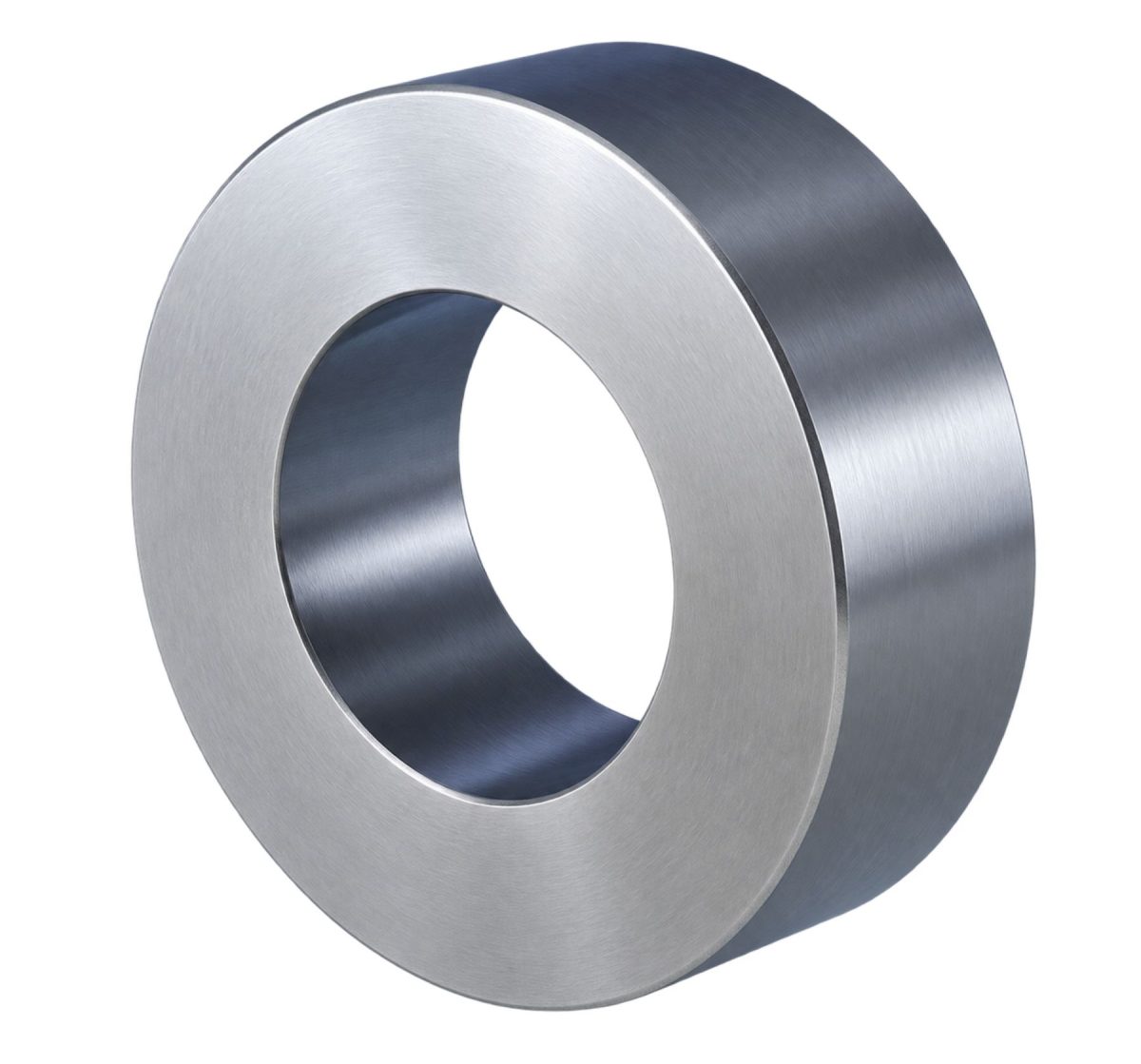

Application: heavy-section and rail mill

Description: Chromium with nickel and molybdenum results in a high level of hardenability and wear resistance. High chrome iron sleeves are heat-treated to produce discontinuous, highly wear-resistant iron/chromium carbides in a matrix which can be varied from spheroidal pearlite through to high hardness martensite according to the requirements of the application. The high hardenability enables the hardness to be made virtually consistent across any section.

Manufacturing process: static casting

Applications: plate mills

Description: Backup rolls weighing 60-230 tones made of alloy-forged steel with Cr content of 1,40-5,50% have an excellent combination of metallurgical and physical properties such as a compact porosity-free microstructure; good ductility and toughness values; high resistance to fatigue, wear and thermal cracking. High physical and metallurgical properties are to be achieved throughout the optimal combination of pure steel, forging ratio and heat treatment processing.

Application: plate mill, hot strip mill, cold rolling mill

Description: Rolls for their smooth rotation as well as for resistance to different forces need ‘bearings’. Roll bearings are to meet the basic need of the rolling mill which is the smooth rolling of the steel products. They are friction reducing devices which provide support to the rolls for effective rolling with minimum of energy loss. The bearings are designed to withstand high rolling loads, heavy shocks, varying speeds, and high temperatures.

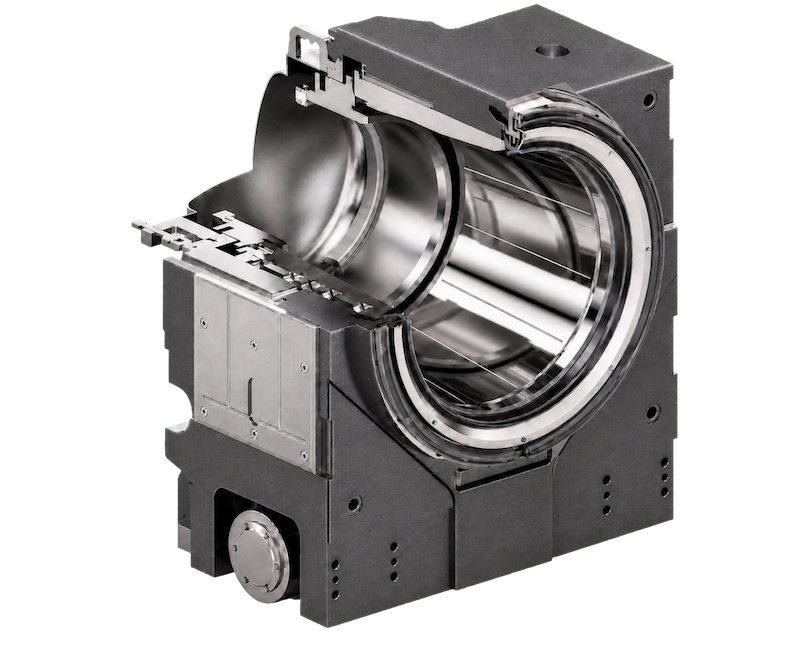

The housing of a work roll or backup roll bearing is known as roll chock or simply chock. Chock is the basic part of a rolling mill. It is mounted in the window of the roll stand housing between the posts with a small clearness. The roll stand housing encloses and supports the chock assembly. The chock also prevents scale getting into the roll neck bearing.

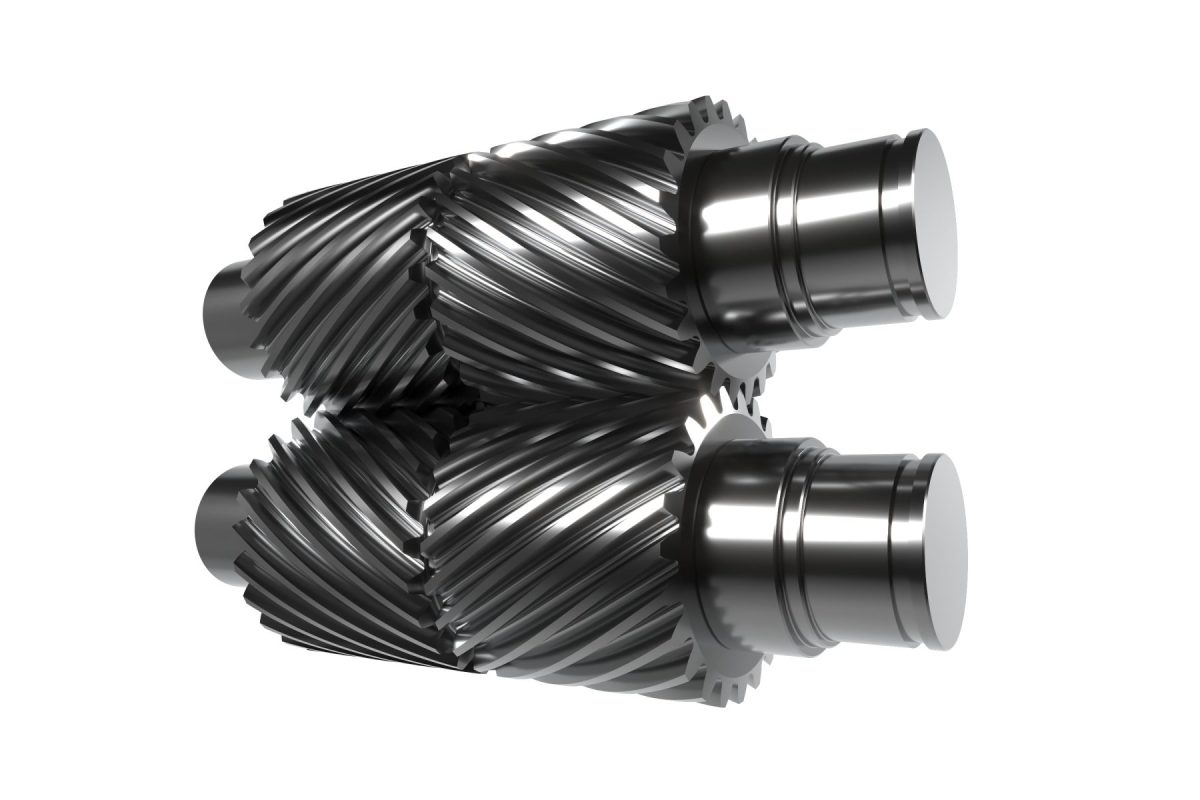

Application: rolling mill main drives, converter tilting drives, metallurgical and hydropower crane reducers, mining gearboxes, and general heavy industry.

Product range:

• Large heavy-duty gears
• Herringbone gears
• Circular-arc (Novikov) gears
• Bevel gears
• Planetary gears
• Gear shafts and pinions
• Rolling mill main-drive gearboxes
• Converter tilting drives
• Metallurgical and hydropower crane reducers
• Mining gearboxes
• Standard and custom industrial gearboxes

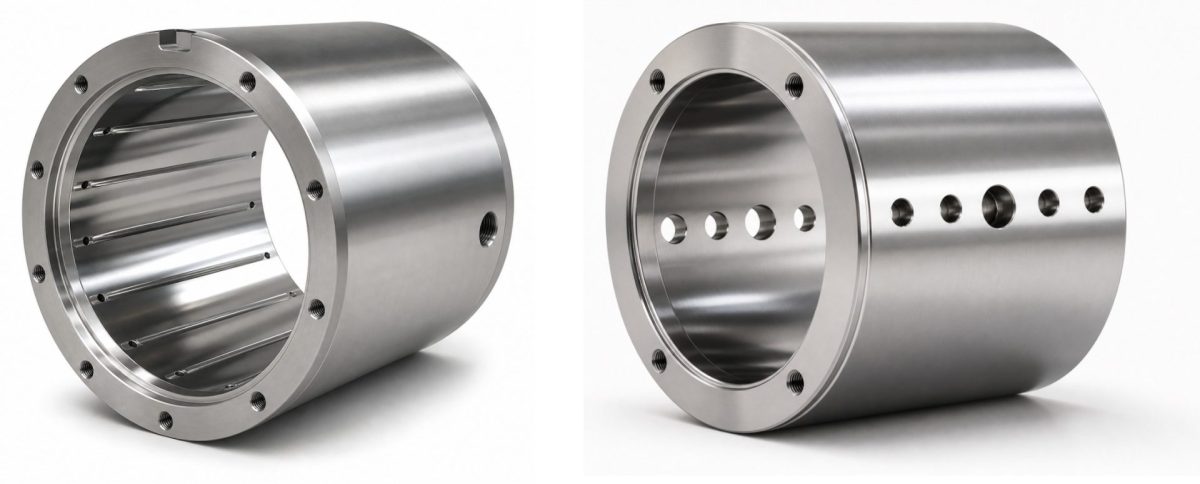

Application: Backup roll chocks for hot strip, plate and cold rolling mills.

Description: Precision-manufactured sleeves, bronze-lined bushes and complete oil film bearing assemblies made to customer or OEM drawings. Available as individual spares or matched sets with thrust bearings, seals and end plates. Accurate machining ensures correct running clearance, stable oil-film formation and full interchangeability with the installed bearing design.

Scope of supply: Sleeves, bushes, bearing inserts, complete assemblies, thrust bearings, seal rings and end plates. Re-engineering.

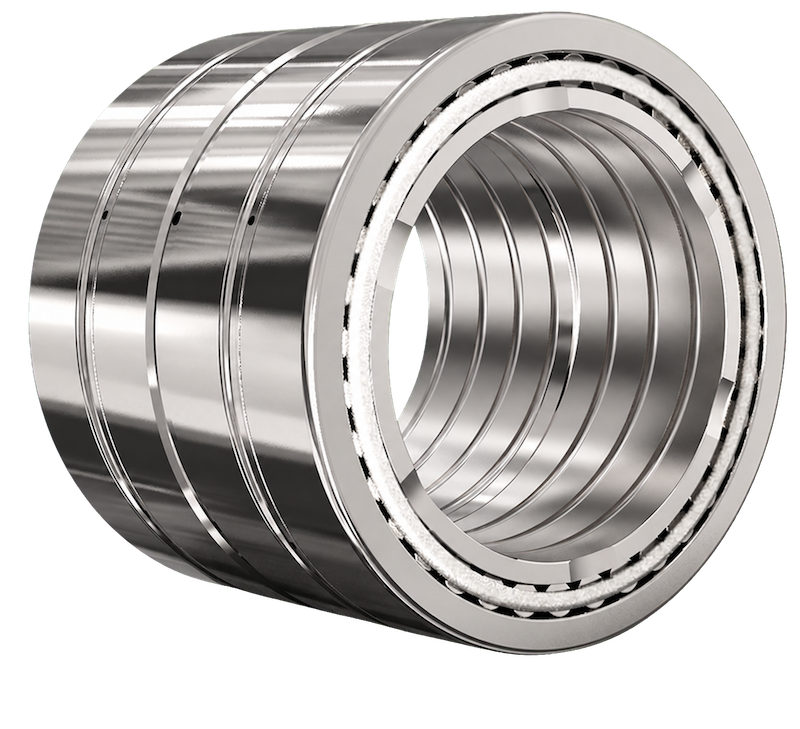

Application: rolling mills, metallurgical plant, mining and materials-handling equipment, cranes and general heavy industry.

Description: Bearings for high radial and axial loads, shock loading and high operating temperatures. Supplied to customer or OEM designation as direct replacements for installed equipment.

Range supplied:

• Spherical Roller Bearings
• Cylindrical Roller Bearings
• Deep Groove Ball Bearings
• Angular Contact Ball Bearings
• Tapered Roller Bearings
• Split Roller Bearings
• Spherical Roller Thrust Bearings

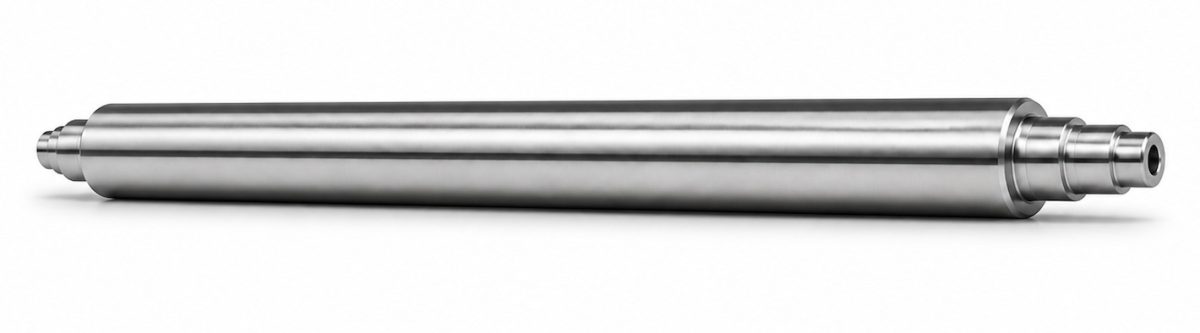

Application: hot and cold plate levellers, roller levellers and plate straightening machines.

Description: Forged work rolls and backup rolls for plate levellers. Work rolls bend the plate directly and take high contact stress with each pass; in hot levellers they also see continuous thermal cycling, so the barrel must resist wear, spalling and thermal fatigue at the same time. Backup rolls support the work rolls along their length and hold the levelling gap, and therefore require high stiffness and a stable, accurately ground barrel.

Product range: work rolls and backup rolls for hot and cold plate levellers; straightening machine rolls

Manufacturing process: open-die forging, quenching and tempering, surface hardening, finish grinding and polishing

Materials: forged Cr-Mo and Cr-Ni-Mo alloy steels; hot-work grades for hot leveller duty

Dimensions: diameter, barrel length and neck design to customer drawing

Interchangeability: manufactured to customer or OEM drawings — direct replacements for installed leveller rolls
